Tapered Roller Bearings are designed so that the imagined conical apices formed by the raceways of the inner and outer rings and the rollers all converge at one point on the bearing axis.
The trapezoidal tapered rollers used as the rolling elements are guided by a large rib on the inner ring.
Condition Description
- High Accuracy
- High Load
Product Features

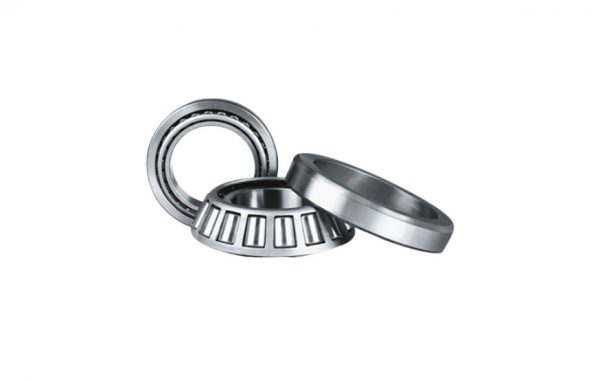

- Separable bearing consisting of a Cup (outer ring) and Cone (inner ring with roller/cage assembly)
- Optimized internal design, featuring a larger quantity of larger-sized rollers
- With high accuracy and high strength pressed steel cage
- Available with normal, medium and steep contact angle types
- With adjustable clearance – axial clearance or preload can be set during installation
- Dimension series 302, 303, 313, 320, 322, 323, 329, 331 and 332
- For shaft diameters ranging from 15 to 360 mm
Operating Benefits
- High combined load capacity, accommodating axial loads in both directions with duplex arrangements
- Versatile duplex configurations, with or without spacers
- High rigidity of preloaded duplex arrangements delivers precise shaft guidance and minimal deflection under load
