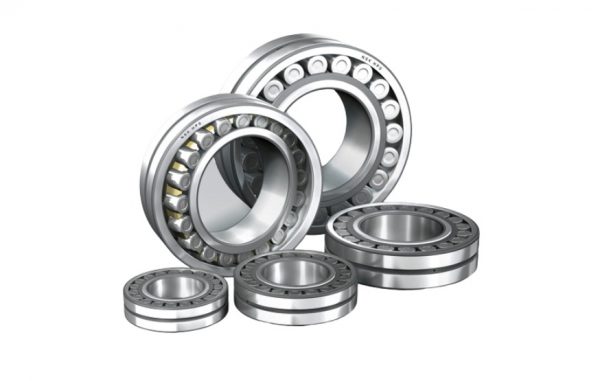

Spherical Roller Bearings

NSKHPS Spherical Roller Bearings are optimized by design to deliver higher load carrying capacity, operate with higher limiting speeds, and perform reliably for a longer operating life.

In conventional applications, their high-performance capacity can also enable downsizing the design envelope for machinery and equipment.

Specifically engineered to withstand the tough working environments of heavy industry.
Spherical Roller Bearings with CAM cage are designed with a precision-machined tough solid brass cage. Highly resistant to heavy or shock loading designed for high speed performance and low operating temperature rise.

Spherical Roller Bearings are available in EA, C, CD, and CA types designed for high load capacity.

Condition Description

High Load
High Speed
High Temperature
Misalignment

Product Features

Highest load rating SRB’s
Optimum raceway design & surface finishing
Brass cage design (CAM) or strengthened steel cage (EA)
High cleanliness steel
Temperature stability: up to 200° C
40 mm to 420 mm bore size

Operating Benefits

Up to twice the operating life
Up to 20% higher limiting speed
Dynamic load rating: 25% higher
Lower maintenance cost and improved productivity
High load rating enables downsizing

232 36 CA M K E4 C3 S11 H

	Description
232	Bearing type and series
36	Bore
CA	Internal Design
M	Cage
K	Design of Rings
E4	Design of Rings
C3	Radial Internal Clearance
S11	Special Specification
H	NSKHPS

BASIC BEARING NO.		BEARING DIMENSIONS				BASIC LOAD RATINGS		LIMITING SPEED
		mm				kN		rpm
Cylindrical Bore	Tapered Bore	d	D	B	r (min)	Dynamic	Static	Grease	Oil
22208EAE4	22208EAKE4	40	80	23	1.1	113	99	5 600	7 100
21308EAE4	21308EAKE4	40	90	23	1.5	118	111	6 000	7 500
22308EAE4	22308EAKE4	40	90	33	1.5	170	153	5 300	6 700
22209EAE4	22209EAKE4	45	85	23	1.1	118	111	6 000	7 500
21309EAE4	21309EAKE4	45	100	25	1.5	149	144	5 000	6 300
22309EAE4	22309EAKE4	45	100	36	1.5	207	195	4 500	5 600
22210EAE4	22210EAKE4	50	90	23	1.1	124	119	5 600	7 100
21310EAE4	21310EAKE4	50	110	27	2.0	178	174	4 500	5 600
22310EAE4	22310EAKE4	50	110	40	2.0	246	234	4 300	5 300
22211EAE4	22211EAKE4	55	100	25	1.5	149	144	5 300	6 700
21311EAE4	21311EAKE4	55	120	29	2.0	178	174	4 500	5 600
22311EAE4	22311EAKE4	55	120	43	2.0	292	292	3 800	4 800
22212EAE4	22212EAKE4	60	110	28	1.5	178	174	4 800	6 000
21312EAE4	21312EAKE4	60	130	31	2.1	238	244	3 800	4 800
22312EAE4	22312EAKE4	60	130	46	2.1	340	340	3 600	4 500
22213EAE4	22213EAKE4	65	120	31	1.5	221	230	4 300	5 300
21313EAE4	21313EAKE4	65	140	33	2.1	264	275	3 600	4 500
22313EAE4	22313EAKE4	65	140	48	2.1	375	380	3 200	4 000
22214EAE4	22214EAKE4	70	125	31	1.5	225	232	4 000	5 300
21314EAE4	21314EAKE4	70	150	35	2.1	310	325	3 200	4 000
22314EAE4	22314EAKE4	70	150	51	2.1	425	435	3 000	3 800
22215EAE4	22215EAKE4	75	130	31	1.5	238	244	4 000	5 000
21315EAE4	21315EAKE4	75	160	37	2.1	310	325	3 200	4 000
22315EAE4	22315EAKE4	75	160	55	2.1	485	505	2 800	3 600
22216EAE4	22216EAKE4	80	140	33	2.0	264	275	3 600	4 500
21316EAE4	21316EAKE4	80	170	39	2.1	355	375	3 000	3 800
22316EAE4	22316EAKE4	80	170	58	2.1	540	565	2 600	3 400
22217EAE4	22217EAKE4	85	150	36	2.0	310	325	3 400	4 300
21317EAE4	21317EAKE4	85	180	41	3.0	360	395	3 000	4 000
22317EAE4	22317EAKE4	85	180	60	3.0	600	630	2 400	3 200
22218EAE4	22218EAKE4	90	160	40	2.0	360	395	3 200	4 000
21318EAE4	21318EAKE4	90	190	43	3.0	415	450	2 800	3 600
22318EAE4	22318EAKE4	90	190	64	3.0	665	705	2 400	3 000
22219EAE4	22219EAKE4	95	170	43	2.1	415	450	3 000	3 800
21319CAME4	21319CAMKE4	95	200	45	3.0	430	435	1 500	2 000
22319EAE4	22319EAKE4	95	200	67	3.0	735	780	2 200	2 800
22220EAE4	22220EAKE4	100	180	46	2.1	455	490	2 800	3 600
23220CAME4	23220CAMKE4	100	180	60.3	2.1	525	605	1 600	2 200
21320CAME4	21320CAMKE4	100	215	47	3.0	495	485	1 400	1 900
22320EAE4	22320EAKE4	100	215	73	3.0	860	930	2 000	2 600
23122CAME4	23122CAMKE4	110	180	56	2.0	480	630	1 600	2 000
24122CAME4	24122CAMK30E4	110	180	69	2.0	575	750	1 600	2 000
22222EAE4	22222EAKE4	110	200	53	2.1	605	645	2 800	3 600
23222CAME4	23222CAMKE4	110	200	69.8	2.1	645	760	1 500	1 900
21322CAME4	21322CAMKE4	110	240	50	3.0	565	545	1 300	1 700
22322EAE4	22322EAKE4	110	240	80	3.0	1 030	1 120	1 900	2 400
23024CAME4	23024CAMKE4	120	180	46	2.0	395	525	1 800	2 200
24024CAME4	24024CAMK30E4	120	180	60	2.0	480	680	1 500	2 000
23124CAME4	23124CAMKE4	120	200	62	2.0	580	720	1 400	1 800
24124CAME4	24124CAMK30E4	120	200	80	2.0	695	905	1 400	1 800
22224EAE4	22224EAKE4	120	215	58	2.1	685	765	2 400	3 000
23224CAME4	23224CAMKE4	120	215	76	2.1	790	970	1 300	1 700
22324EAE4	22324EAKE4	120	260	86	3.0	1 190	1 320	1 700	2 200
23026CAME4	23026CAMKE4	130	200	52	2.0	500	655	1 700	2 000
24026CAME4	24026CAMK30E4	130	200	69	2.0	620	865	1 400	1 800
23126CAME4	23126CAMKE4	130	210	64	2.0	630	825	1 300	1 700
24126CAME4	24126CAMK30E4	130	210	80	2.0	735	1 010	1 300	1 700
22226EAE4	22226EAKE4	130	230	64	3.0	820	940	2 200	2 600
23226CAME4	23226CAMKE4	130	230	80	3.0	875	1 080	1 200	1 600
22326CAME4	22326CAMKE4	130	280	93	4.0	1 240	1 350	1 300	1 600
23028CAME4	23028CAMKE4	140	210	53	2.0	525	715	1 600	1 900
24028CAME4	24028CAMK30E4	140	210	69	2.0	635	905	1 300	1 700
23128CAME4	23128CAMKE4	140	225	68	2.1	725	945	1 200	1 600
24128CAME4	24128CAMK30E4	140	225	85	2.1	835	1 160	1 200	1 600
22228CAME4	22228CAMKE4	140	250	68	3.0	835	945	1 400	1 700
23228CAME4	23228CAMKE4	140	250	88	3.0	1 040	1 300	1 100	1 500
22328CAME4	22328CAMKE4	140	300	102	4.0	1 450	1 590	1 200	1 500
23030CAME4	23030CAMKE4	150	225	56	2.1	590	815	1 400	1 800
24030CAME4	24030CAMK30E4	150	225	75	2.1	740	1 090	1 200	1 500
23130CAME4	23130CAMKE4	150	250	80	2.1	905	1 180	1 100	1 400
24130CAME4	24130CAMK30E4	150	250	100	2.1	1 070	1 450	1 100	1 400
22230CAME4	22230CAMKE4	150	270	73	3.0	955	1 120	1 300	1 600
23230CAME4	23230CAMKE4	150	270	96	3.0	1 220	1 560	1 100	1 400
22330CAME4	22330CAMKE4	150	320	108	4.0	1 530	1 690	1 100	1 400
23932CAME4	23932CAMKE4	160	220	45	2.0	450	675	1 400	1 800
23032CAME4	23032CAMKE4	160	240	60	2.1	675	955	1 300	1 700
24032CAME4	24032CAMK30E4	160	240	80	2.1	845	1 260	1 100	1 400
23132CAME4	23132CAMKE4	160	270	86	2.1	1 070	1 400	1 000	1 300
24132CAME4	24132CAMK30E4	160	270	109	2.1	1 240	1 670	1 000	1 300
22232CAME4	22232CAMKE4	160	290	80	3.0	1 140	1 320	1 200	1 500
23232CAME4	23232CAMKE4	160	290	104	3.0	1 370	1 770	1 000	1 300
22332CAME4	22332CAMKE4	160	340	114	4.0	1 700	1 900	1 100	1 300
23934CAME4	23934CAMKE4	170	230	45	2.0	450	680	1 300	1 700
23034CAME4	23034CAMKE4	170	260	67	2.1	795	1 090	1 200	1 600
24034CAME4	24034CAMK30E4	170	260	90	2.1	1 030	1 520	1 000	1 300
23134CAME4	23134CAMKE4	170	280	88	2.1	1 180	1 570	1 000	1 300
24134CAME4	24134CAMK30E4	170	280	109	2.1	1 280	1 770	1 000	1 300
22234CAME4	22234CAMKE4	170	310	86	4.0	1 240	1 500	1 100	1 400
23234CAME4	23234CAMKE4	170	310	110	4.0	1 500	1 910	900	1 200
22334CAME4	22334CAMKE4	170	360	120	4.0	1 970	2 110	1 000	1 200
23936CAME4	23936CAMKE4	180	250	52	2.0	590	890	1 200	1 600
23036CAME4	23036CAMKE4	180	280	74	2.1	935	1 270	1 200	1 400
24036CAME4	24036CAMK30E4	180	280	100	2.1	1 210	1 750	950	1 200
23136CAME4	23136CAMKE4	180	300	96	3.0	1 320	1 760	900	1 200
24136CAME4	24136CAMK30E	180	300	118	3.0	1 490	2 040	900	1 200
22236CAME4	22236CAMKE4	180	320	86	4.0	1 280	1 540	1 100	1 300
23236CAME4	23236CAMKE4	180	320	112	4.0	1 620	2 110	850	1 100
22336CAME4	22336CAMKE4	180	380	126	4.0	2 170	2 340	950	1 200
23938CAME4	23938CAMKE4	190	260	52	2.0	575	875	1 200	1 500
23038CAME4	23038CAMKE4	190	290	75	2.1	970	1 350	1 100	1 400
24038CAME4	24038CAMK30E4	190	290	100	2.1	1 220	1 840	900	1 200
23138CAME4	23138CAMKE4	190	320	104	3.0	1 480	2 020	850	1 100
24138CAME4	24138CAMK30E4	190	320	128	3.0	1 710	2 330	850	1 100
22238CAME4	22238CAMKE4	190	340	92	4.0	1 420	1 730	1 000	1 200
23238CAME4	23238CAMKE4	190	340	120	4.0	1 800	2 350	800	1 100
22338CAME4	22338CAMKE4	190	400	132	5.0	2 370	2 590	900	1 100
23940CAME4	23940CAMKE4	200	280	60	2.1	710	1 060	1 100	1 400
23040CAME4	23040CAMKE4	200	310	82	2.1	1 180	1 700	1 000	1 300
24040CAME4	24040CAMK30E4	200	310	109	2.1	1 420	2 120	850	1 100
23140CAME4	23140CAMKE4	200	340	112	3.0	1 700	2 330	800	1 000
24140CAME4	24140CAMK30E4	200	340	140	3.0	1 960	2 660	800	1 000
22240CAME4	22240CAMKE4	200	360	98	4.0	1 620	2 010	950	1 200
23240CAME4	23240CAMKE4	200	360	128	4.0	2 070	2 750	750	1 000
22340CAME4	22340CAMKE4	200	420	138	5.0	2 500	2 990	850	1 000
23944CAME4	23944CAMKE4	220	300	60	2.1	785	1 240	1 000	1 300
23044CAME4	23044CAMKE4	220	340	90	3.0	1 360	1 980	950	1 200
24044CAME4	24044CAMK30E4	220	340	118	3.0	1 640	2 490	750	1 000
23144CAME4	23144CAMKE4	220	370	120	4.0	1 960	2 710	710	950
24144CAME4	24144CAMK30E4	220	370	150	4.0	2 250	3 200	710	950
22244CAME4	22244CAMKE4	220	400	108	4.0	1 960	2 430	850	1 000
23244CAME4	23244CAMKE	220	400	144	4.0	2 520	3 400	670	900
22344CAME4	22344CAMKE4	220	460	145	5.0	2 940	3 400	750	950
23948CAME4	23948CAMKE4	240	320	60	2.1	795	1 300	950	1 200
23048CAME4	23048CAMKE4	240	360	92	3.0	1 450	2 140	850	1 100
24048CAME4	24048CAMK30E4	240	360	118	3.0	1 730	2 730	710	950
23148CAME4	23148CAMKE4	240	400	128	4.0	2 230	3 100	670	850
24148CAME4	24148CAMK30E4	240	400	160	4.0	2 660	3 800	670	850
22248CAME4	22248CAMKE4	240	440	120	4.0	2 340	2 890	750	950
23248CAME4	23248CAMKE4	240	440	160	4.0	3 050	4 050	630	800
22348CAME4	22348CAMKE4	240	500	155	5.0	3 250	3 800	670	850
23952CAME4	23952CAMKE4	260	360	75	2.1	1 170	1 870	850	1 000
23052CAME4	23052CAMKE4	260	400	104	4.0	1 780	2 580	800	950
24052CAME4	24052CAMK30E4	260	400	140	4.0	2 270	3 500	630	850
23152CAME4	23152CAMKE4	260	440	144	4.0	2 700	3 750	600	800
24152CAME4	24152CAMK30E4	260	440	180	4.0	3 200	4 700	600	800
22252CAME4	22252CAMKE4	260	480	130	5.0	2 720	3 400	670	850
23252CAME4	23252CAMKE4	260	480	174	5.0	3 400	4 550	560	750
22352CAME4	22352CAMKE4	260	540	165	6.0	3 900	4 600	630	800
23956CAME4	23956CAMKE4	280	380	75	2.1	1 160	1 950	800	950
23056CAME4	23056CAMKE4	280	420	106	4.0	1 930	2 950	710	900
24056CAME4	24056CAMK30E4	280	420	140	4.0	2 350	3 800	600	800
23156CAME4	23156CAMKE4	280	460	146	5.0	2 790	4 000	560	750
24156CAME4	24156CAMK30E4	280	460	180	5.0	3 300	5 000	560	750
22256CAME4	22256CAMKE4	280	500	130	5.0	2 850	3 650	630	800
23256CAME4	23256CAMKE4	280	500	176	5.0	3 600	4 900	530	670
22356CAME4	22356CAMKE4	280	580	175	6.0	4 350	5 150	560	710
23960CAME4	23960CAMKE4	300	420	90	3.0	1 540	2 490	710	900
23060CAME4	23060CAMKE4	300	460	118	4.0	2 400	3 700	670	850
24060CAME4	24060CAMK30E4	300	460	160	4.0	2 890	4 600	530	710
23160CAME4	23160CAMKE4	300	500	160	5.0	3 350	4 800	500	670
24160CAME4	24160CAMK30E4	300	500	200	5.0	3 900	5 800	500	670
22260CAME4	22260CAMKE4	300	540	140	5.0	3 250	4 250	600	750
23260CAME4	23260CAMKE4	300	540	192	5.0	4 250	5 900	480	630
23964CAME4	23964CAMKE4	320	440	90	3.0	1 620	2 750	670	850
23064CAME4	23064CAMKE4	320	480	121	4.0	2 450	3 850	630	800
24064CAME4	24064CAMK30E4	320	480	160	4.0	3 050	5 050	500	670
23164CAME4	23164CAMKE4	320	540	176	5.0	3 850	5 500	480	600
24164CAME4	24164CAMK30E4	320	540	218	5.0	4 400	6 650	480	600
22264CAME4	22264CAMKE4	320	580	150	5.0	3 750	4 850	530	670
23264CAME4	23264CAMKE4	320	580	208	5.0	4 850	6 900	450	600
23968CAME4	23968CAMKE4	340	460	90	3.0	1 670	2 840	630	800
23068CAME4	23068CAMKE4	340	520	133	5.0	2 850	4 400	560	710
24068CAME4	24068CAMK30E4	340	520	180	5.0	3 650	6 050	480	600
23168CAME4	23168CAMKE4	340	580	190	5.0	4 500	6 600	430	560
24168CAME4	24168CAMK30E4	340	580	243	5.0	5 300	7 900	430	560
23972CAME4	23972CAMKE4	360	480	90	3.0	1 730	3 050	600	750
23072CAME4	23072CAMKE4	360	540	134	5.0	2 990	4 700	530	670
24072CAME4	24072CAMK30E4	360	540	180	5.0	3 650	6 100	450	600
23172CAME4	23172CAMKE4	360	600	192	5.0	4 800	7 100	400	530
24172CAME4	24172CAMK30E4	360	600	243	5.0	5 250	8 000	400	530
23976CAME4	23976CAMKE4	380	520	106	4.0	2 340	4 100	530	670
23076CAME4	23076CAMKE4	380	560	135	5.0	3 150	5 100	530	630
24076CAME4	24076CAMK30E4	380	560	180	5.0	3 850	6 600	430	560
23980CAME4	23980CAMKE4	400	540	106	4.0	2 370	4 250	530	630
23080CAME4	23080CAMKE4	400	600	148	5.0	3 700	5 900	480	600
24080CAME4	24080CAMK30E4	400	600	200	5.0	4 500	7 600	400	500
23984CAME4	23984CAMKE4	420	560	106	4.0	2 340	4 250	500	600

TECHCO SCHEERER VIETNAM CO., LTD

17th Floor, Vincom Center 72 Le Thanh Ton street, District 1, Ho Chi Minh City, Vietnam.

Phone: (+84) 028 7300 7228

Contact Persons: (+84) 028 7305 7228

Email: info@techco-scheerer.com.vn
